Valves Sockets / 9 Pin B9A Belton Micalex Valve Socket Chassis Mount with Collar VT9-ST-C

9 Pin B9A Belton Micalex Valve Socket Chassis Mount with Collar VT9-ST-C Click on image(s) above to view larger

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

We have a range of high quality valve sockets for replacement in Vintage and modern amplifiers. We have a small stock of original Mcmurdo valves bases as well as the very high quality Belton bases. All are chassis mount unless stated.

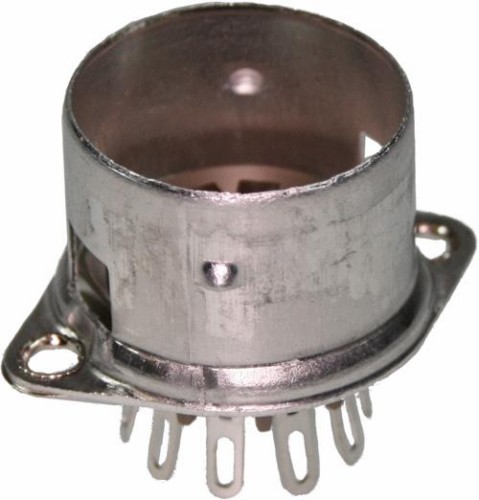

9 pin B9A Belton VT9-ST-C is a very high quality Micalex valve socket for chassis mounting with valve shield mounting ring.

Belton bases are made from micalex which is a plastic mica filled base which is heat resistant. Micalex is an insulating material which allows high voltage operation. These are the choice of many high end amplifier manufactures.

This is ideal replacement in all vintage and modern amplifiers that use 9 pin miniature B9A types such as ECC81, ECC82, ECC83 This item has the shield fixing but does not come with the shield.

Hole diameter- 3/4 inches
Mounting centre - 1 1/8 inches
Mounting hole width- 0.14 inches
