Z&I Aero Services / 6BE6/CV453-Z&I AERO SERVICES

6BE6/CV453-Z&I AERO SERVICES 6BE6/CV453-Z&I AERO SERVICES Click on image(s) above to view larger
£4.50

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.


A test report is available click here to view

Z & I or Zaerix as many people know them by where a UK company that sourced valves from around the world.

Many items are from companies such as G.E Mullard, RFT as they did not make valves themselves. Many items are of high quality as they were a major supplier to the M.o.D and N.A.T.O . Most valves were supplied to government contacts from their London show rooms

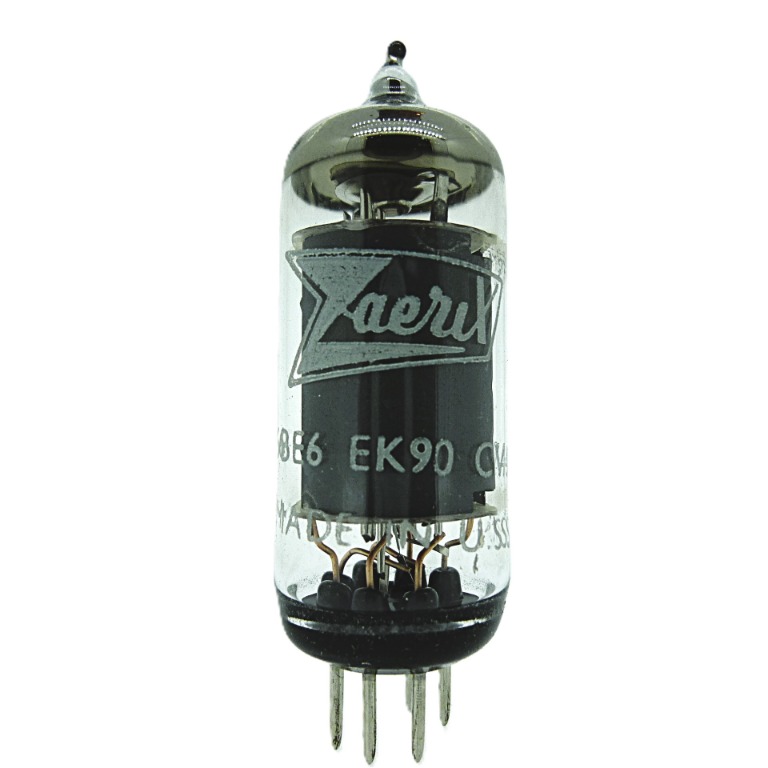

The 6BE6 is a valve used in Radio and Television industry.

These valves are from Z & I of the UK and were supplied to the UK government under the CV453 and 5750 type number.

The 6BE6 operation is a heptode or pentagrid valve. The heptode is used as a frequency changer in a superhet receiver. This valve is used to change frequency the incoming signal is mixed with a local oscillator. The electron stream is effectively switched on and off by the oscillator.
