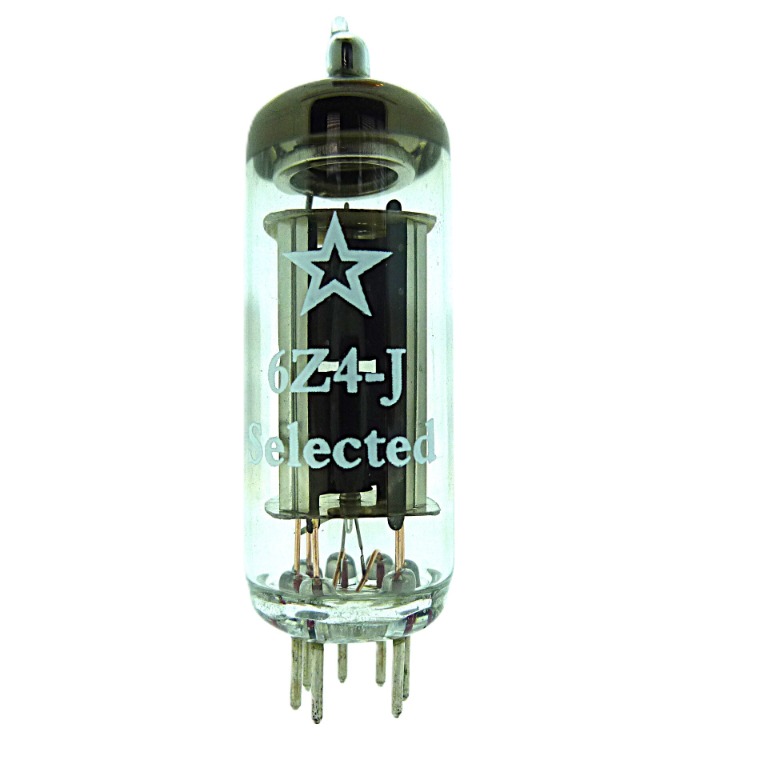

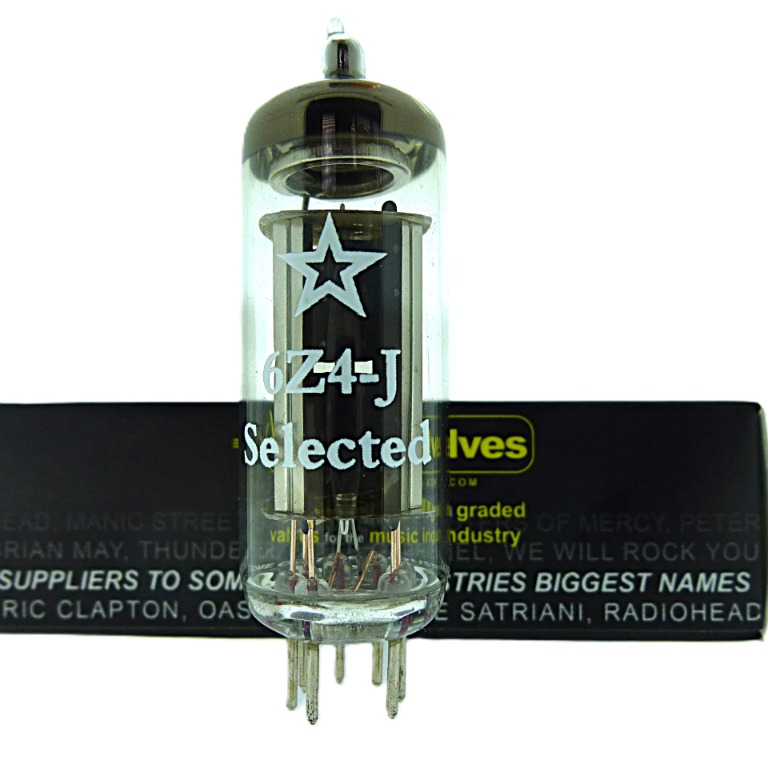

6Z4J/6X4R-BEIJING NOS 6Z4J/6X4R-BEIJING NOS Click on image(s) above to view larger

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

Same as 6X4R Russian, Not the same as EZ90 6X4



The 6Z4 is a valve rectifier which is becoming very popular with high end audio amplifier and guitar amplifier manufactures.

This item is the J version (the "J" means Jun Dui, which is Chinese for "army").

6Z4J was the highest grade Chinese rectifier and was made in the Beijing factory for the army. These were produced from the 1970s to early 1990s, when the Beijing factory closed.

The valve has the same characteristics as an American 6X4 or European EZ90 but has different pin connections so is not a direct replacement without re wiring the socket.

The differences are on pins 5, 6 & 7

The 6X4 and EZ90 are wired
Pin 5 un connected,
Pin 6 is anode 2,
Pin 7 is cathode.

The 6Z4 -J
Pin 5 cathode,
Pin 6 un connected,
Pin 7 anode 2

This valve offers the repairer and valve amplifier manufacture a high quality rectifier at very low cost. The valve is the same pin out as the 6x4R Russian.
These have all been specially selected for Audio applications.
