Valve Tube Damping Rings / Valve Damping Rings for 20mm Diameter NOS Signal Valves

Valve Damping Rings for 20mm Diameter NOS Signal Valves Click on image(s) above to view larger
£1.75

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

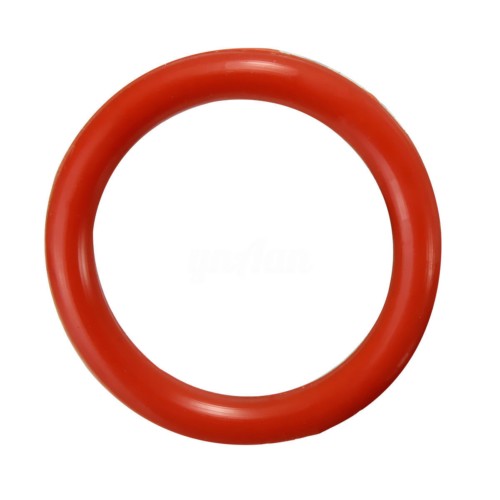

Silicone valve damping rings For New old Stock preamp valves with 20mm diameter dimensions such as 12AX7, ECC83, 12AT7, ECC81, 12AU7, ECC82, 12AY7, EF86, ECC88, 6922 from original factories such as Mullard, Philips, RCA, General Electric , Sylvania.

If fitting to amplifiers that use valve covers then the covers will need to be removed.
We do not recommend using valve dampers on power valve such as EL84 or using dampers at temperatures above 200C rating.

The silicone valve damping rings will reduce microphony and tube rattle and are ideal for Audio applications.

Our Recommendation is to fit two rings per valve one at the top and one at the bottom.


Specifications:

Inner Diameter: 18.7 mm
Thickness: 2.6 mm
Temp Rating: 200 Degrees Centigrade

For New Old Stock Valves by Mullard, Philips, RCA, General Electric
ECC81,ECC82,ECC83,6922,E88CC and other small diameter 20 mm 9 pin signal valves.
