Novosibirsk Russian Valves / GZ32/5U4C-NOVOSIBIRSK

GZ32/5U4C-NOVOSIBIRSK GZ32/5U4C-NOVOSIBIRSK Click on image(s) above to view larger
£15.00

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.


A test report is available click here to view

Novosibirsk, Russia is a Large collective factory that, makes high quality receiving valves and diodes.

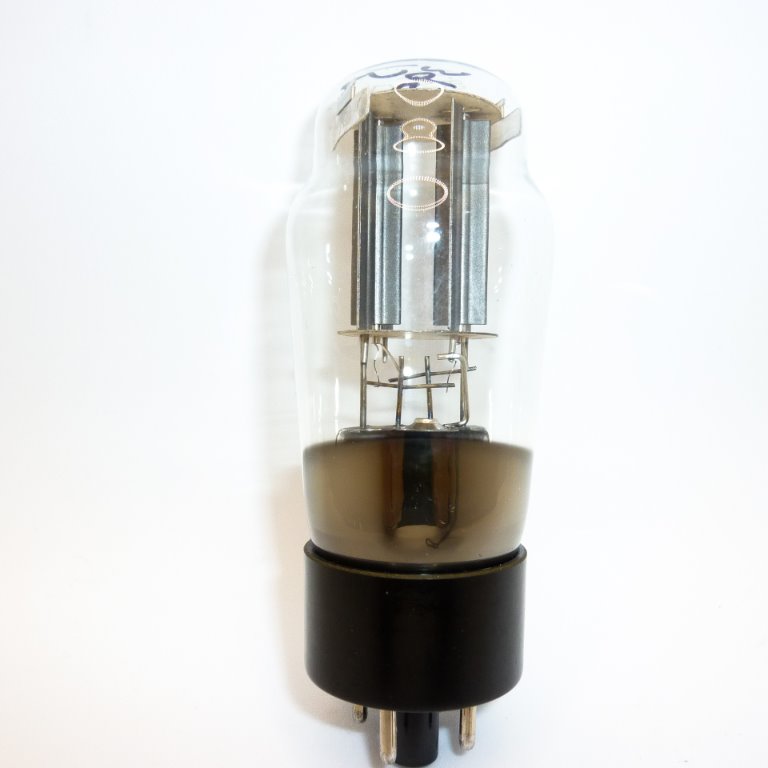

Russian vintage military 5U4C in Cyrillic script which has a compact ST coke bottle glass envelope dual grey anode plate with bottom flying saucer getter.

On Inspection these valve are identical to the Foreign made Brimar GZ32, Pinnacle GZ32 and Z & I Aero Services also known as Zaerix. So It is clear that this Russian 5U4C is what these companies were rebranding.

So a look at the data sheet shows the following

GZ32- heater volts 5, heater current 2 amps, max anode current 500 m/A max rectified current 125 m/A.

The 5U4C is identical in all except the max anode current which is 375 m/A

So I decided to run these in my Quad 11 Power amps during lock down and 2 years on no issues.

All The 5U4C we offer have been individually tested on voltage drop. These valve offer the Quad 11 owners a cost effective alternative to the expensive GZ32.

The compact size looks better and in proportion to the KT66.

We have a small stock of this classic nos rectifier valve
