DR Z Full Revalve Kits / Dr Z Route 66 Harma STR Rec KT66 Relic Mazda EF86 Full Upgrade Kit

Dr Z Route 66 Harma STR Rec KT66 Relic Mazda EF86 Full Upgrade Kit Dr Z Route 66 Harma STR Rec KT66 Relic Mazda EF86 Full Upgrade Kit Click on image(s) above to view larger
£150.00

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

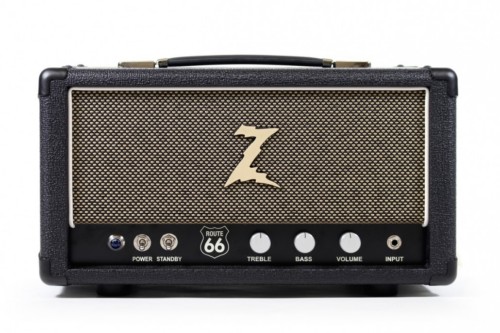

DR Z amplifiers were founded in 1988 by Mike Zaite, a.k.a. Dr. Z.in Cleveland, Ohio, in the United States. In 1994 Zaite built several more amps for Joe Walsh to use on the 1994 Eagles World Tour this put DR Z name firmly in the public eye. Dr. Z amplifiers are beautifully made and many use a unique circuit design bases on the EF86 pentode. Our upgrade kits use the best combination of new old stock and modern day valves. These we believe will give you the best sound and performance from your amplifier. You have not compromised in your choice of amplifier, so why compromised on the choice of valves.
The Harma STR Rec KT66 Relic full upgrade kit is designed to give you the classic Clapton rock sound that he used in his days with John Myall. This is done by using the higher input gain from the Mazda EF86 and the warmth of The REC KT66

The heart and the soul of the amplifier is the unique use of classic EF86 pentode with a gain thats 50% higher than the hottest 12AX7 this delivers its own distinct voice.

The EF86 Mazda excels in guitar amplifier applications due to the design of the Russian Mazda EF86 having a lower output impedance; the result is 10 % more gain when compared to other modern and new old stock EF86s.

The Harma ECC83 STR has exceptional note clarify with improved definition on the clean tone and extra bite and rich harmonics when overdriven. The valves overdriven characteristics by providing a warm sustaining sound with plenty of upper harmonics.

The REC KT66 Relic is a meticulous recreation of the famous GEC Osram KT66 and follows the original military specification KT66/CV1075.

The REC KT66 Relic has a number of special features such as a gold plated grid wire with carbonized screen grids. The valve has a thick glass envelope with a welded anode plate to prevent microphonics and rattle. The anode plate uses a laminated alloy which helps heat transfer under overload conditions. The grids of the valves use gold grid wire and the grid rods are made from copper which is the best materials to use. The valve uses GEC Style Dual ring getter which are located at the bottom following the original design. GEC Style Grey welded anode plate, GEC Style Dual Horizontal anode slots. These valves are all specially burnt in and selected to the same current specifications and current range of the Original GEC KT66 CV1075.

The REC KT66 Relic is as close as you can get to the original British made GEC KT66 in terms of look and performance. No other KT66 on the market today gets this close

These will supply the famous blues breaker tone of tight punchy lows and clear dynamic highs. The valve has more clarity and bite at the top end with a supreme warm midrange tone resulting in rich harmonics when overdriven.

These are simply the right valves to power this remarkable amplifier and takes sound back to it's sonic roots.

We use an original American Philips 5U4GB as these provide the correct rectification with no reduction in B+ voltage unlike many of the modern 5U4GB on the market today.

The set consists of 5 valves

1 Selected Mazda EF86 in V1
1 Selected and balanced Harma ECC83 STR in V2
2 Selected and matched REC KT66 Relic
1 Selected Philips 5U4GB Military Grade Rectifier

Please note that this upgrade kit is for the valves only
