General Electric / 6F6GT-GENERAL ELECTRIC

6F6GT-GENERAL ELECTRIC 6F6GT-GENERAL ELECTRIC Click on image(s) above to view larger
£25.00

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

One Only

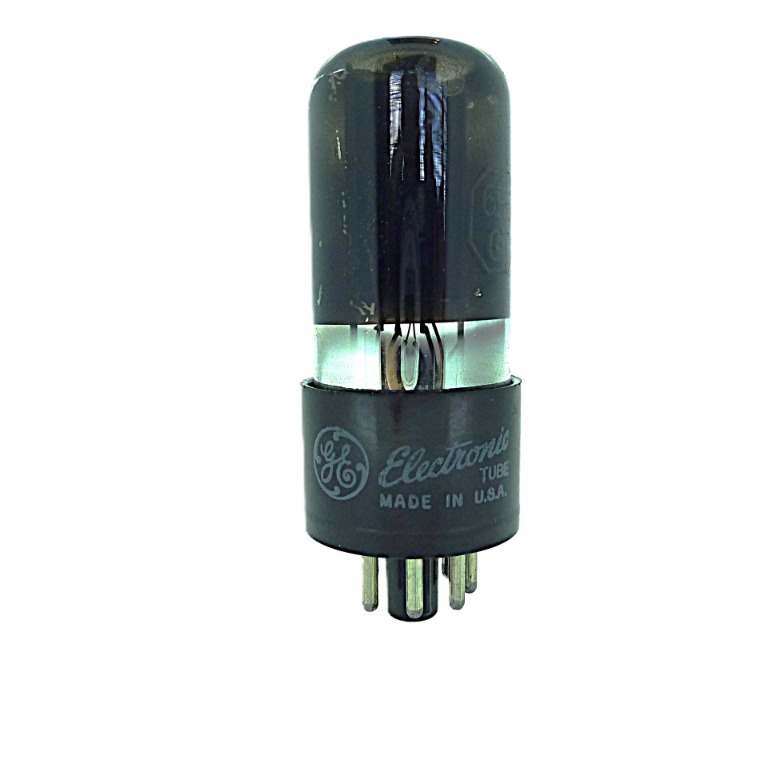

General Electric 6F6GT original USA made valve and this valve has the 6V6GT bottle size.

This 6F6GT is an audio output pentode valve that was designed in the mid-1930 and used in many Wurlitzer vintage jukeboxes.

These valves were available first in a metal case 6F6, then in large classic glass envelopes (6F6G), and then later in tubular GT shape hence 6F6GT and this valve is the straight sided item.

The valve had a maximum rating of 315 Volts on the anodes and operated in class A1 push pull; this valve type would generate 10 Watts with 3% distortion. This type was obsolete by the 1960s as many manufactures moved to 6V6GT so this item is now very hard to find.
