Raytheon / 6F6GT-RAYTHEON

6F6GT-RAYTHEON 6F6GT-RAYTHEON Click on image(s) above to view larger
£20.00

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

Raytheon Technologies Corporation is an American multinational aerospace and defence Electronics group. They produced valves in the USA and distributed valves that they sourced around the globe under the Raytheon brand name. 1961 They took over British electronics company AC Cossor and merged it with Raytheon
One only

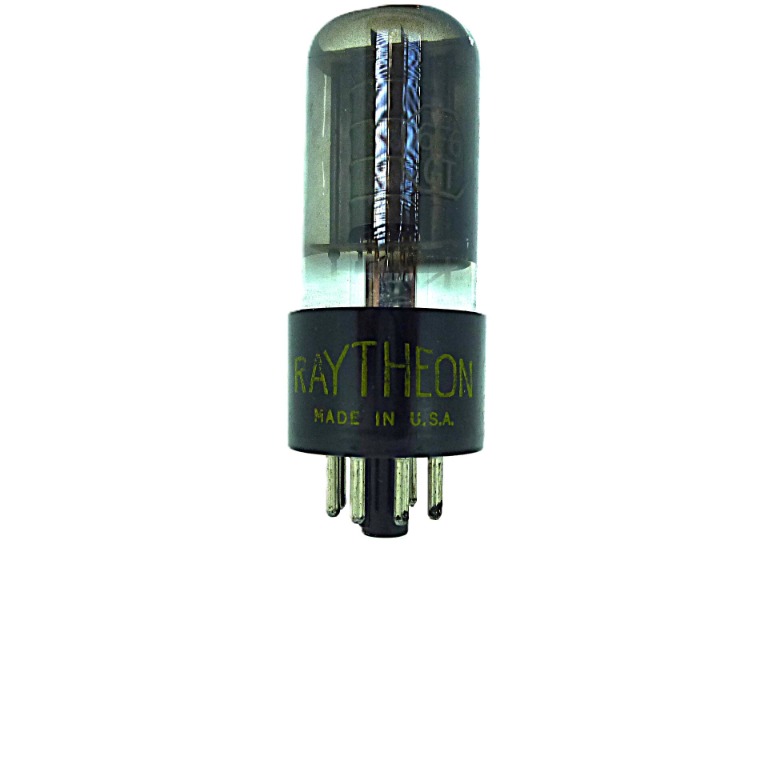

Raytheon 6F6GT original USA made valve and this valve has the 6V6GT bottle size.

This 6F6GT is an audio output pentode valve that was designed in the mid-1930 and used in many Wurlitzer vintage jukeboxes.

These valves were available first in a metal case 6F6, then in large classic glass envelopes (6F6G), and then later in tubular GT shape hence 6F6GT and this valve is the straight sided item.

The valve had a maximum rating of 315 Volts on the anodes and operated in class A1 push pull; this valve type would generate 10 Watts with 3% distortion. This type was obsolete by the 1960s as many manufactures moved to 6V6GT so this item is now very hard to find.
