RCA / 6F6GT-RCA RED LOGO

6F6GT-RCA RED LOGO 6F6GT-RCA RED LOGO Click on image(s) above to view larger
£30.00

BACK
All prices contained on this page are exclusive of VAT. This is currently charged at 20% and is payable by the UK only.

One of the most famous American Valve manufactures of all time. RCA was responsible for designing and manufacturing many important valves such is the 6V6GT, 6L6GC, 7027a and the super EL84 known as 7189. RCA also pioneered many advances in manufacture such as the black plate coating and had a hand in helping GEC make the famous KT66.
One only

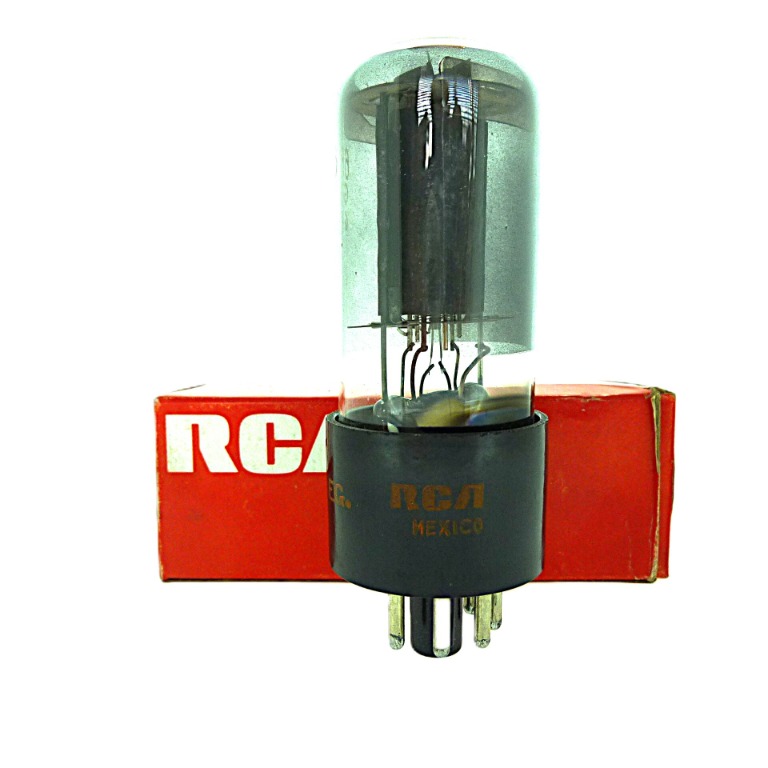

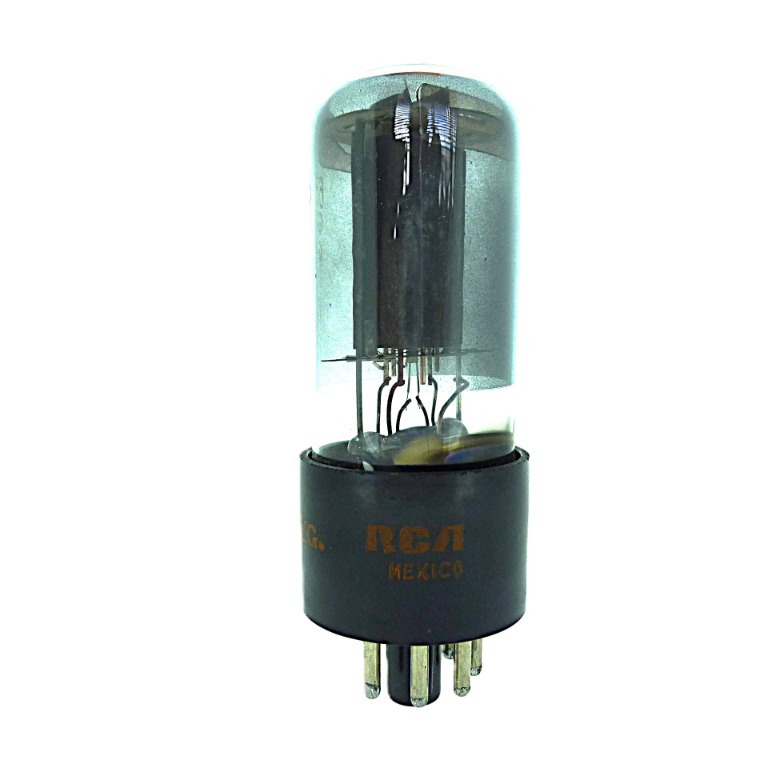

RCA 6F6GT original USA made valve with red logo and has the 6V6GT bottle size.

This 6F6GT is an audio output pentode valve that was designed in the mid-1930 and used in many Wurlitzer vintage jukeboxes.

These valves were available first in a metal case 6F6, then in large classic glass envelopes (6F6G), and then later in tubular GT shape hence 6F6GT and this valve is the straight sided item.

The valve had a maximum rating of 315 Volts on the anodes and operated in class A1 push pull; this valve type would generate 10 Watts with 3% distortion. This type was obsolete by the 1960s as many manufactures moved to 6V6GT so this item is now very hard to find.
